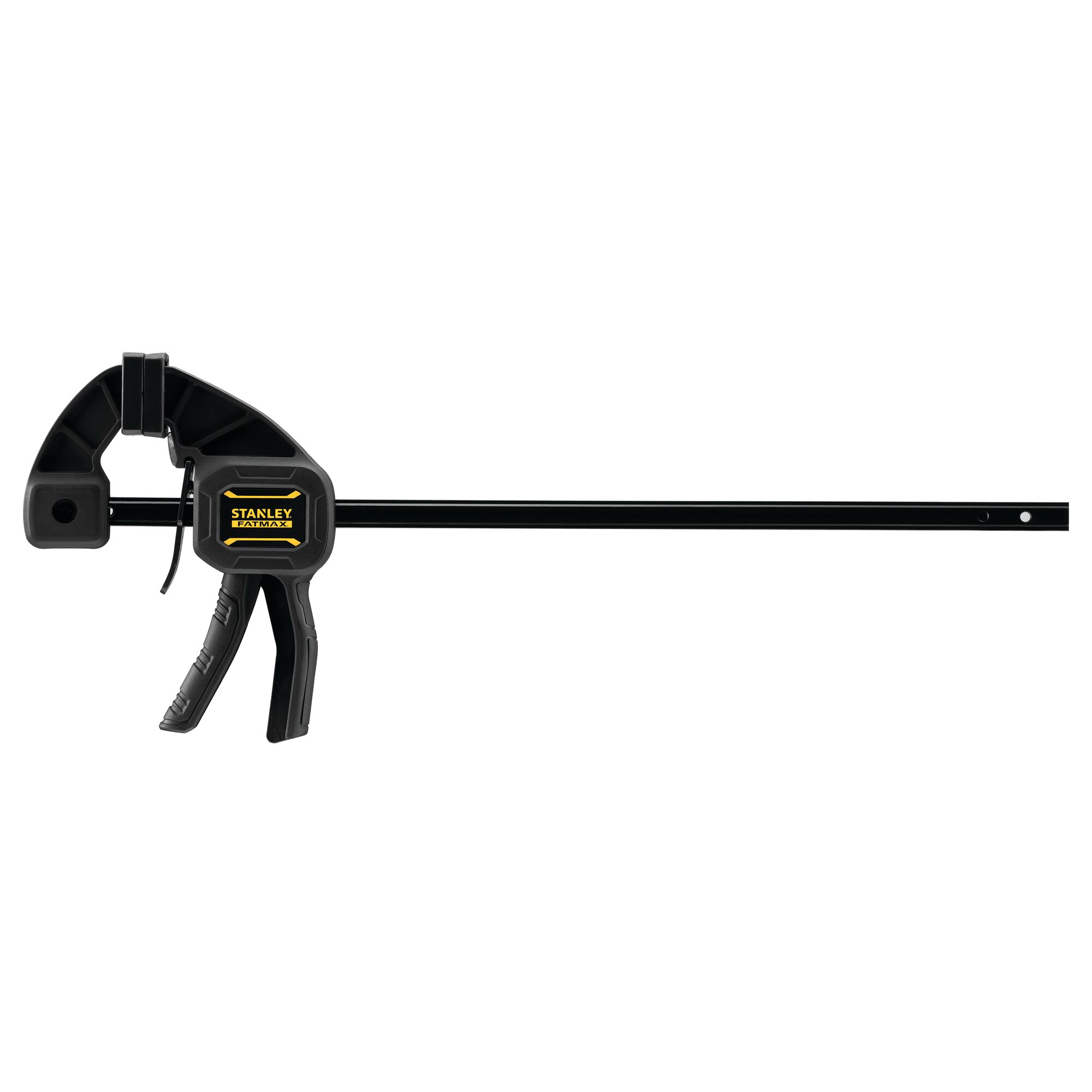

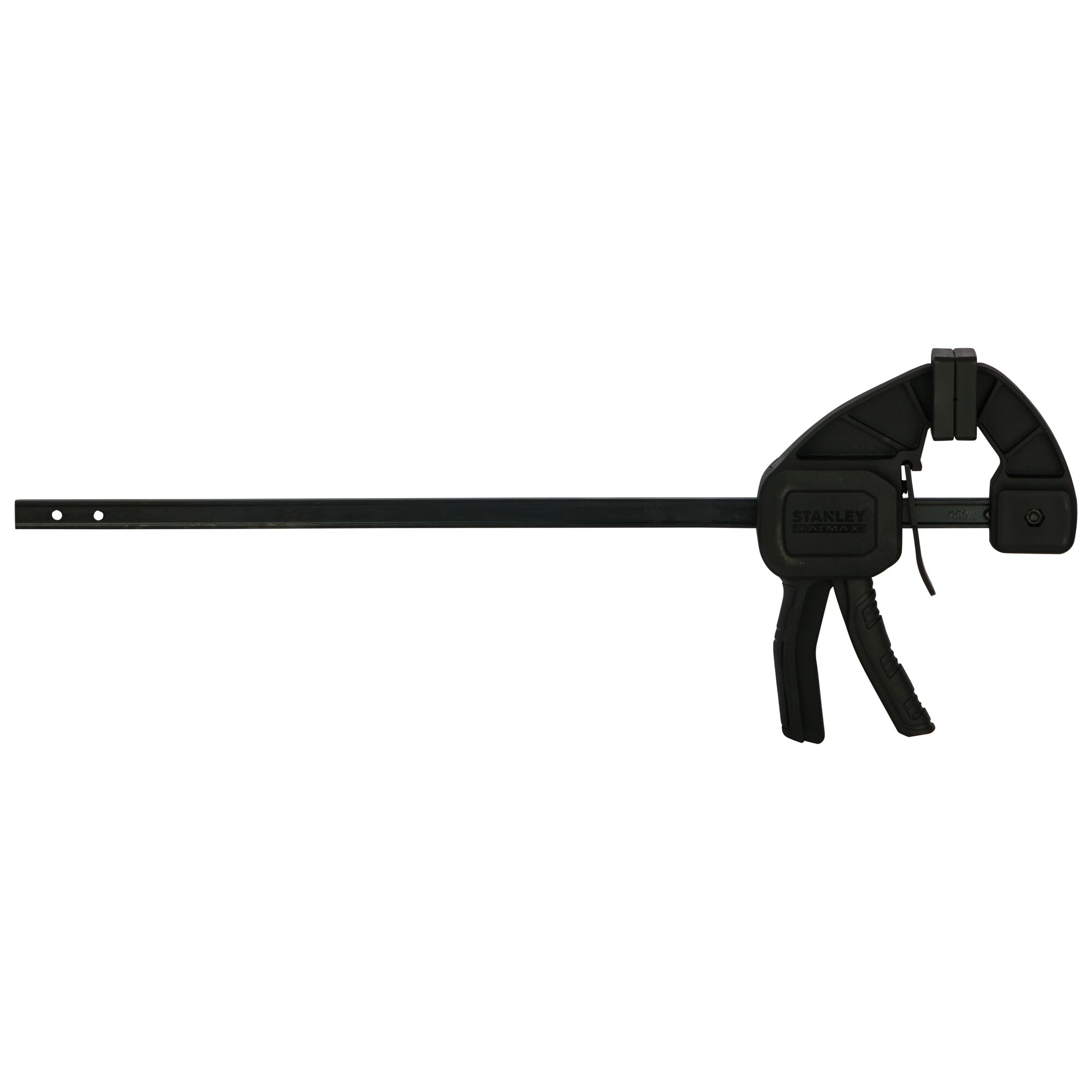

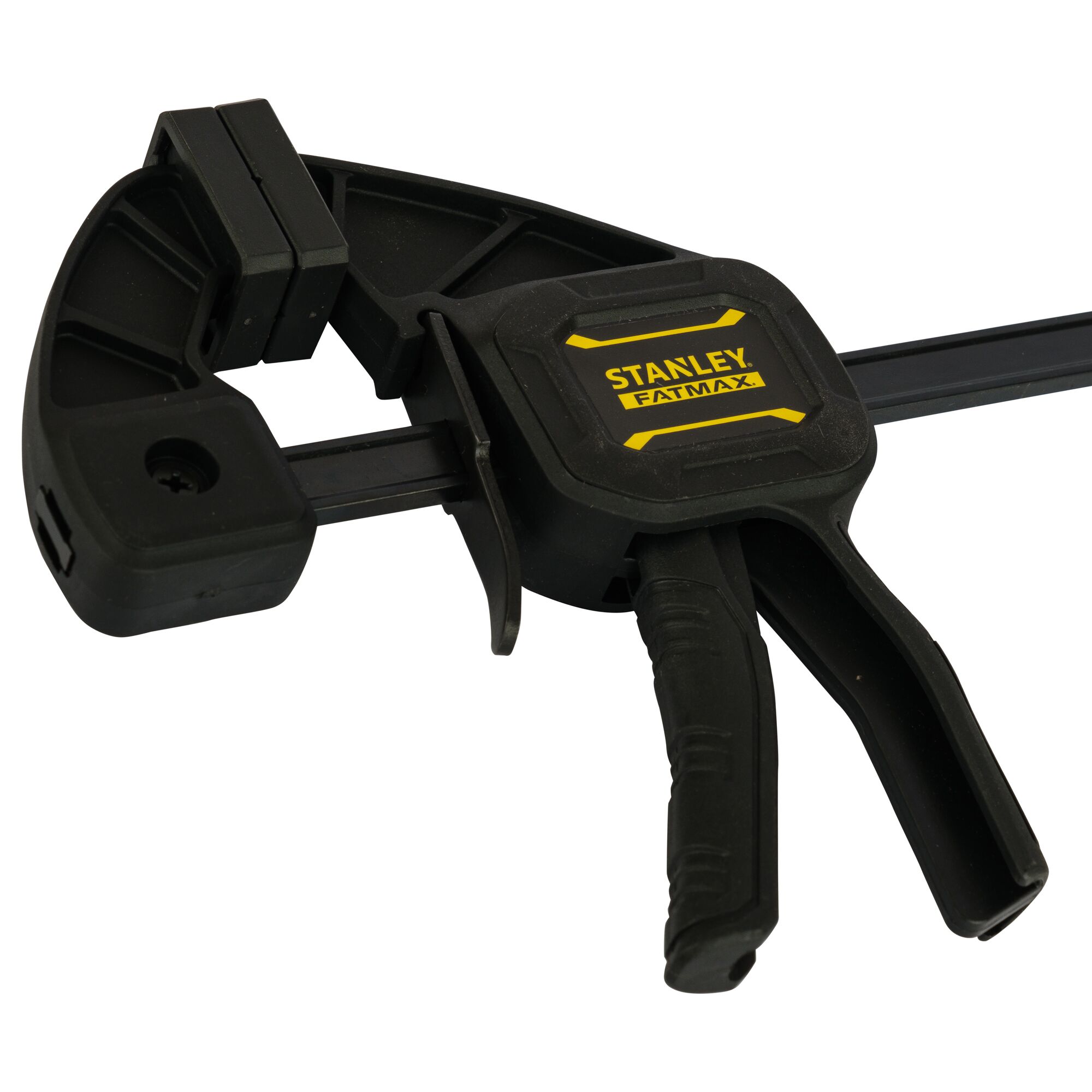

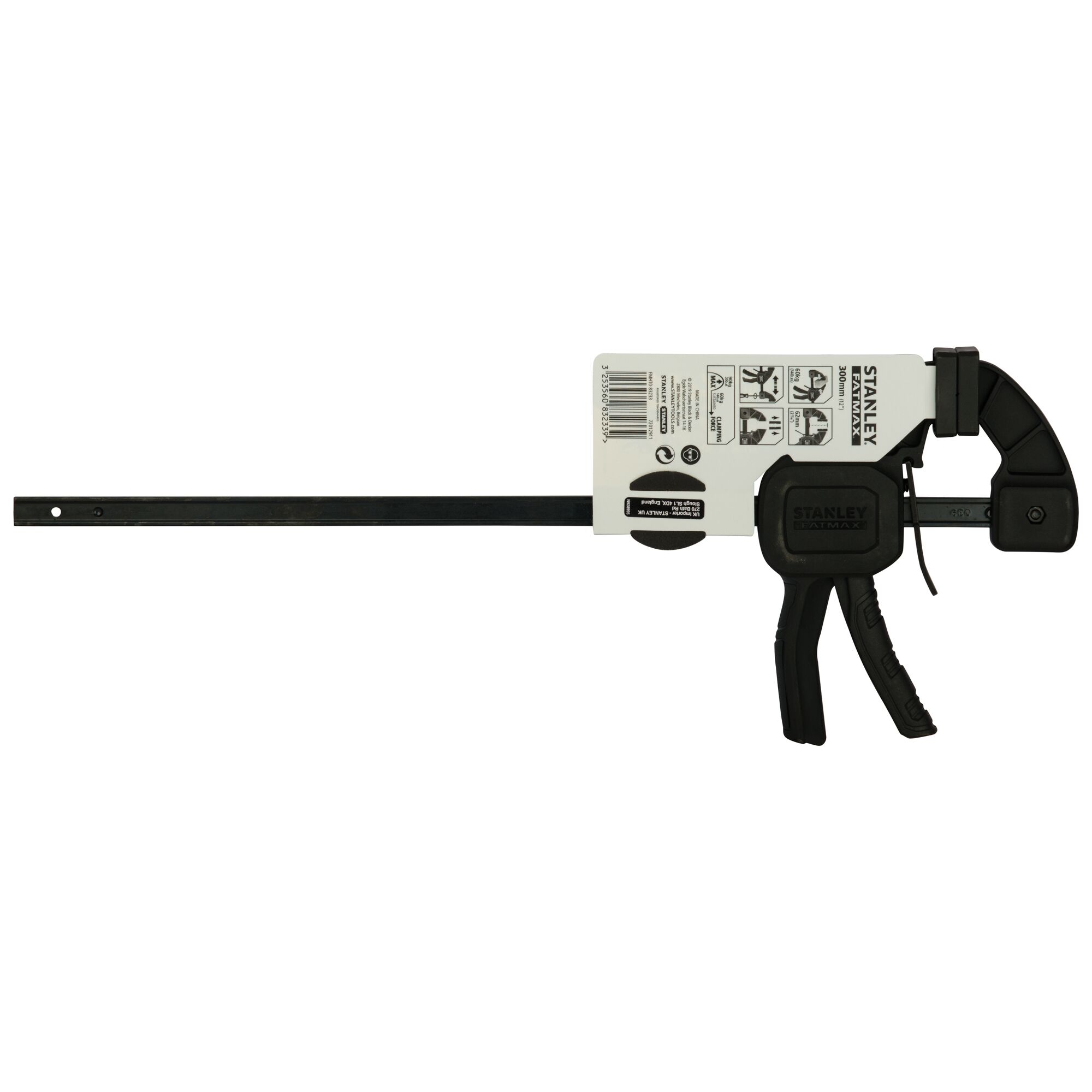

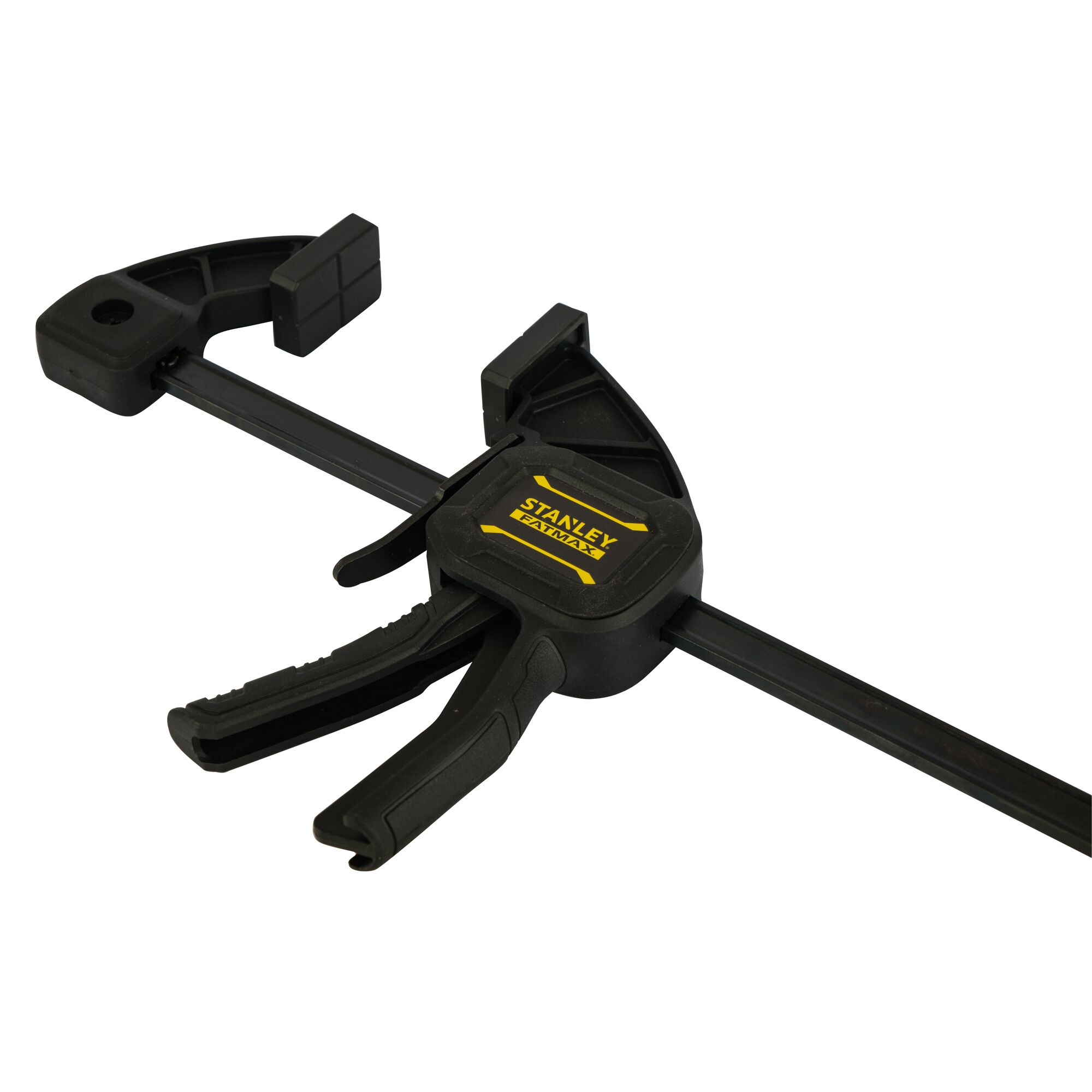

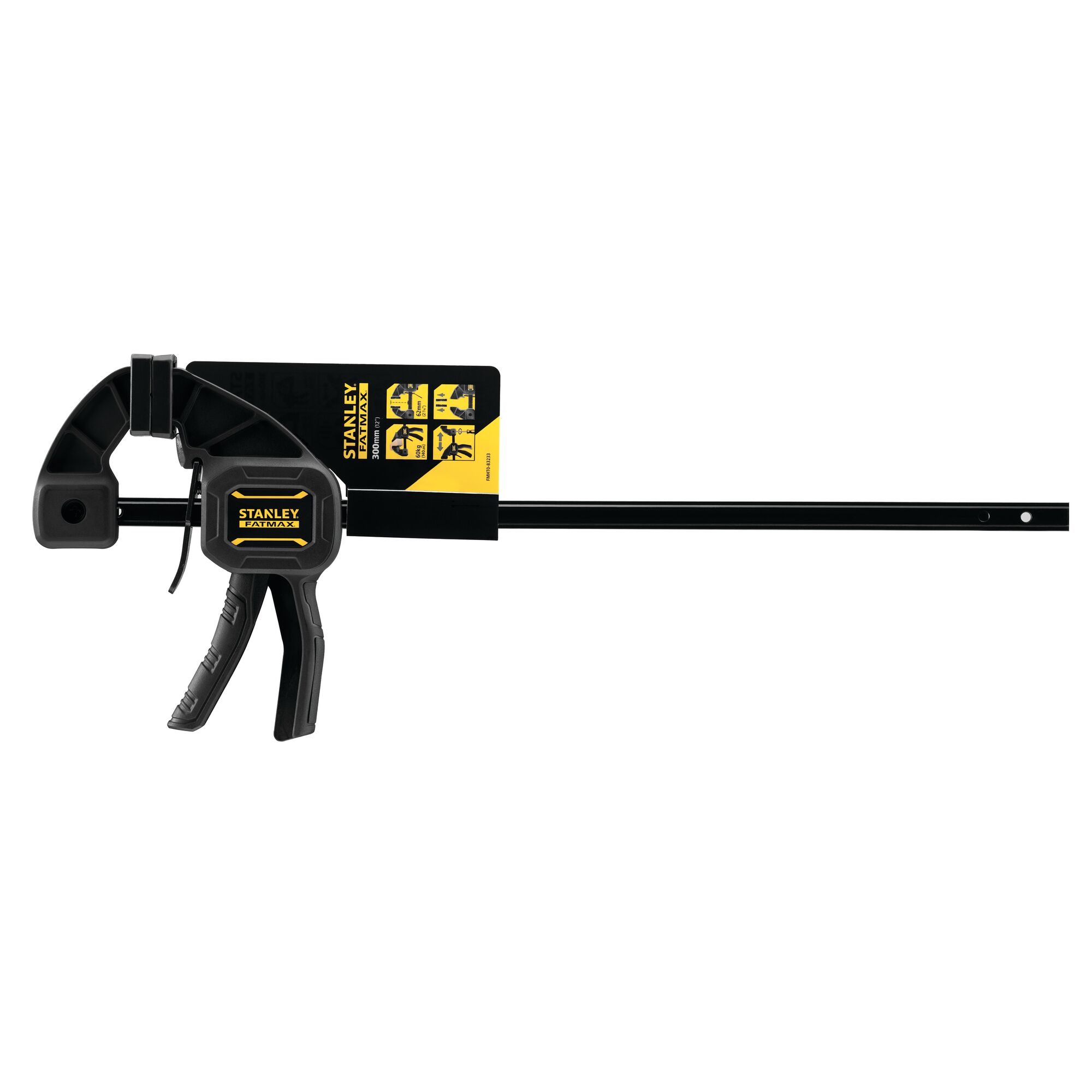

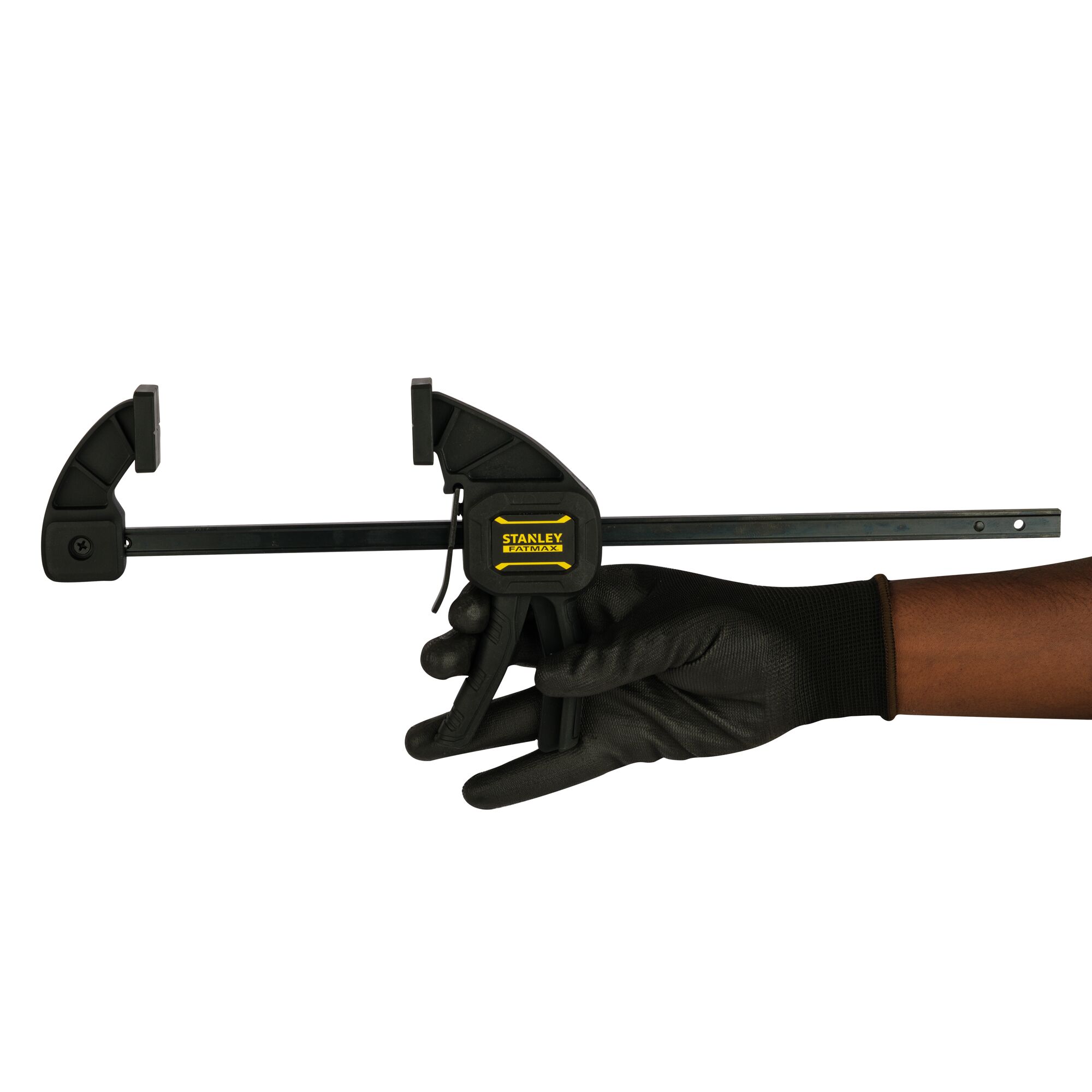

STANLEY® FATMAX® 300mm Medium Trigger Clamp
FMHT0-83233
STANLEY® FATMAX® 300mm Medium Trigger Clamp
- REINFORCED GLASS FIBRE NYLON BODY: For minimal distortion and movement under load
- ROUNDED SHOULDERS WITH RIBS: For added durability and strength
- REMOVABLE SOFT JAWS PADS: Prevents marking of the workpiece
Additional Features
- STEEL I-BEAM BAR - Cold rolled and heat treated for minimal bend and flex under load
- 63KG SUSTAINED CLAMPING FORCE
- 70KG MAXIMUM CLAMPING FORCE
Specifications
|
Bar Material
|
Steel
|
|
Body Material
|
Resin
|
|
Clamping Capacity [mm]
|
300
|
|
Clamping Force [Kg]
|
60
|
|
Clamps and Vices Product Type
|
Trigger Clamp / One Handed Bar Clamp
|
|
Handle Material
|
Steel
|
|
Has CE Mark?
|
No
|
|
Has Quick Release Mechanism?
|
Yes
|
|
Is it a Set?
|
No
|
|
Locking Mechanism
|
N/A
|
|
Material Thread Screw
|
N/A
|
|
Max. Clamping Force [Kg]
|
90
|
|
Number Of Pieces
|
1
|
|
Packaging
|
Carded
|
|
Product Dimensions with Packaging (L x W x H) [mm]
|
445 x161 x 25mm
|
|
Product Dimensions w/o Packaging (L x W x H) [mm]
|
445 x 161 x 25mm
|
|
Product Height [mm]
|
25
|
|
Product Length [mm]
|
445
|
|
Product Weight [Kg]
|
0.35
|
|
Product Width [mm]
|
161
|
|
Spreading Function
|
Yes
|
|
Standards / Norms
|
N/A
|
|
Throat Depth [mm]
|
62
|
Support
Warranty
- 1 Year Limited Warranty
